The T-301 is a non rising stem flanged cast iron gate valve. Non-rising stem design is ideal for confined installations. It features a iron-body-bronze-mount, with bronze seats and solid wedge, assuring a positive drip-tight closure. All external surfaces are primed and dual-coat painted for maximum corrosion resistance.
| Series | Cast Iron Gate Valve |
| Size | 2" |
| Class | 150 |
| End Connection Type | Flange |
| valve operator | Hand wheel |
| Valve Length | 7.01 |
| Valve Height | 10.79 |
| Handle Dia | 7.87 |
| Valve port Dia | 1.97 |

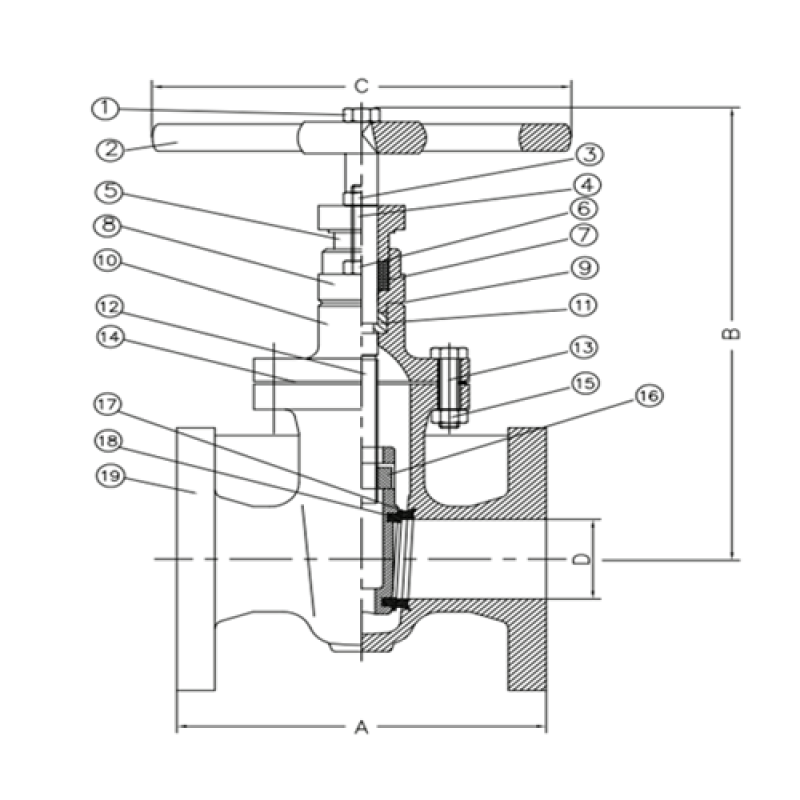

| Drawing | Download |

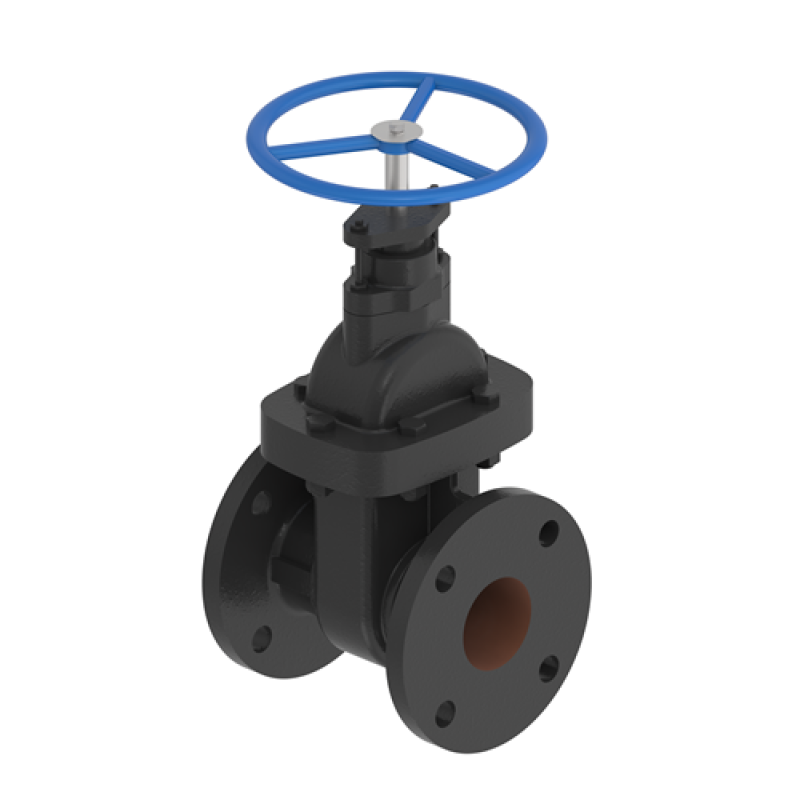

| Isometric View | Download |

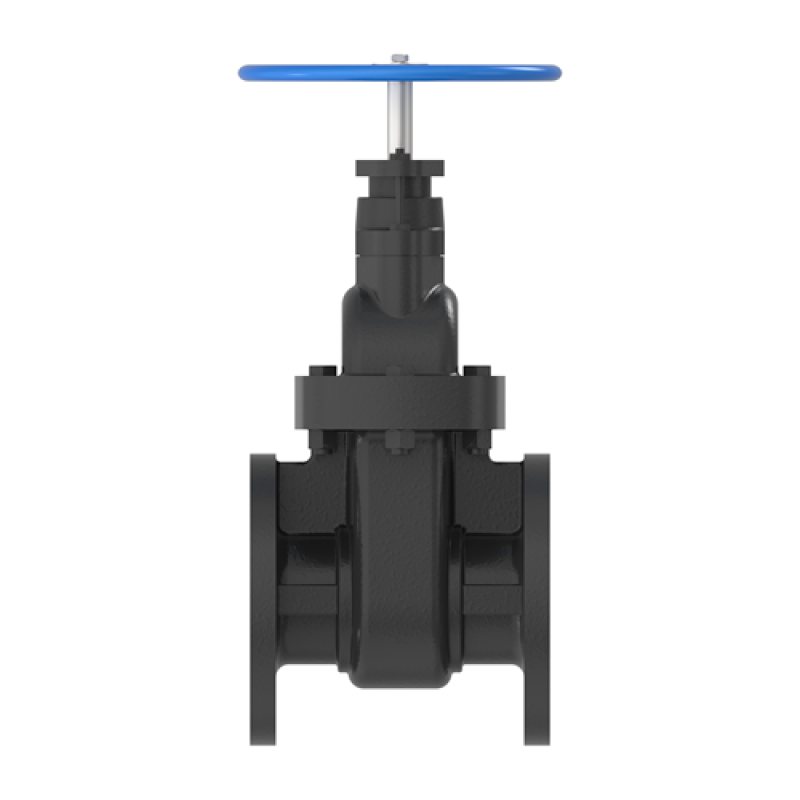

| Front View | Download |

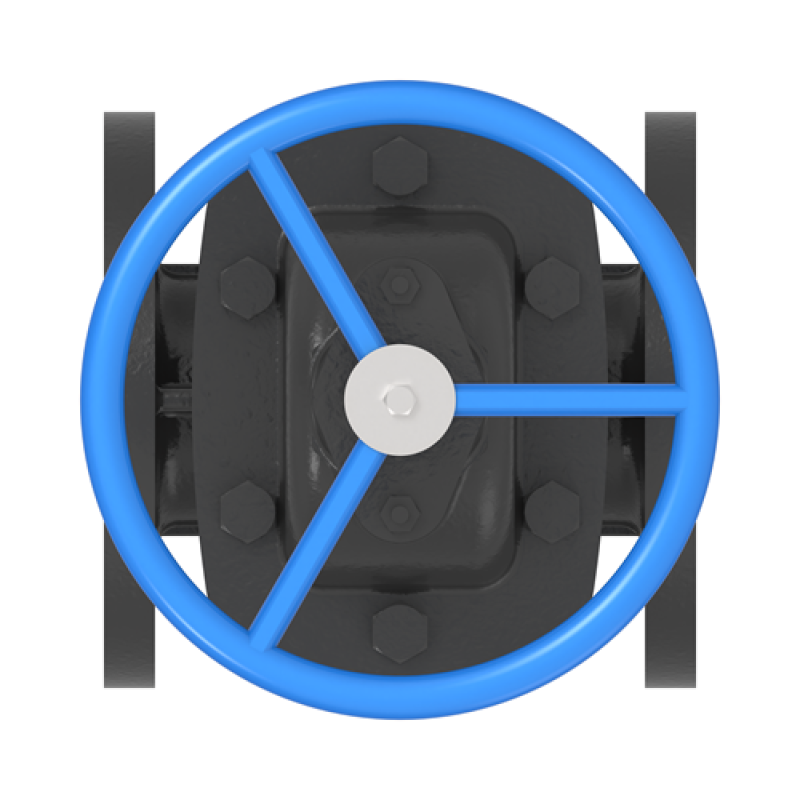

| Top View | Download |

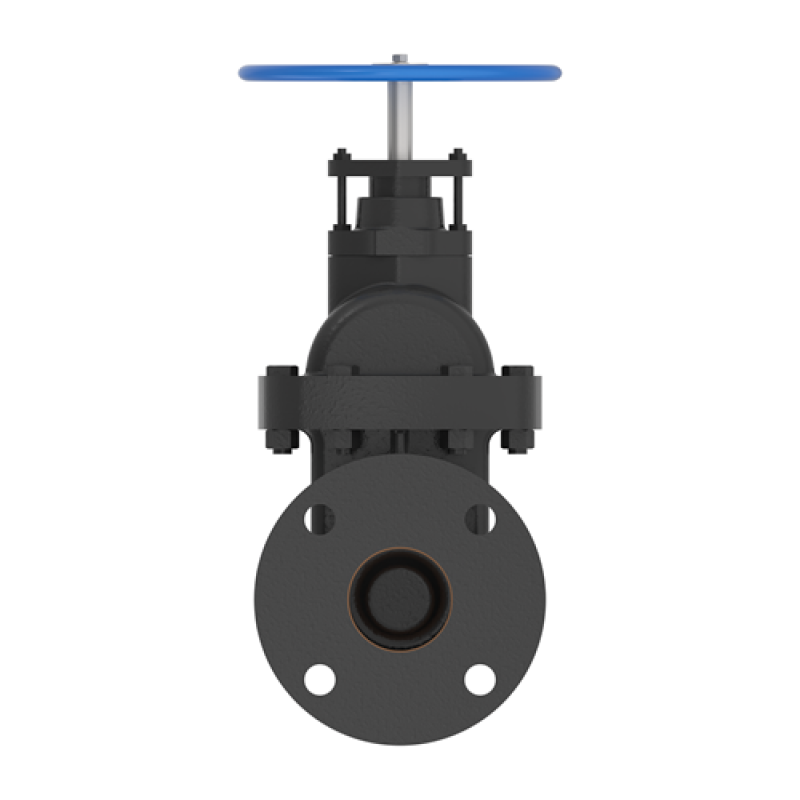

| Side View | Download |
